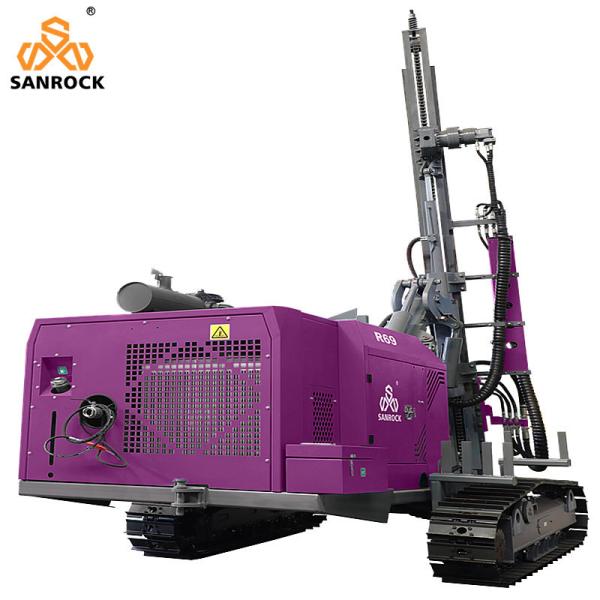

Surface Drilling Rig Crawler Borehole Drilling Rig Lifting Force 27KN Anchor Drilling Machine

Name: Surface Drilling Rig Crawler Borehole Drilling Rig Lifting Force 27KN Anchor Drilling Machine
Brand: Sanrock
Price: 1 USD

China Surface Drilling Rig Crawler Borehole Drilling Rig Lifting Force 27KN Anchor Drilling Machine wholesale

Brand Name : Sanrock

Model Number : R69

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 100 Set/Sets per Month

Delivery Time : 18-25 work days

Packaging Details : Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

Product name : dth drilling rig,Crawler Drilling Rig

Engine : Yuchai

Power(w) : 92KW

Power type : Diesel

Drilling Depth : 50m

Drilling Diameter : 203-500mm

Application : Mining,quarry,drilling blast hole,mining and construction

Lifting force : 27KN

Rotational torque(Max) : 13000N.m

Air consumption : 12-25m3/min

Working pressure : 1.0-2.4Mpa

Rotary Speed : 0-80rpm

Fuel Tank Capacity : 100L

Feed Stroke : 3150mm

Ground Clearance : 450mm

Traveling Speed : 3km/h

Drill Pipe : 89mm/102mm

DTH Hammer : 3-8"

Usage : Ore

Feature : High Drilling Efficiency,Competitive Price

Dimension(l*w*h) : 6000*2380*2600mm

Weight : 6800 KG

Type : Rotary Drilling Rig

Contact Now

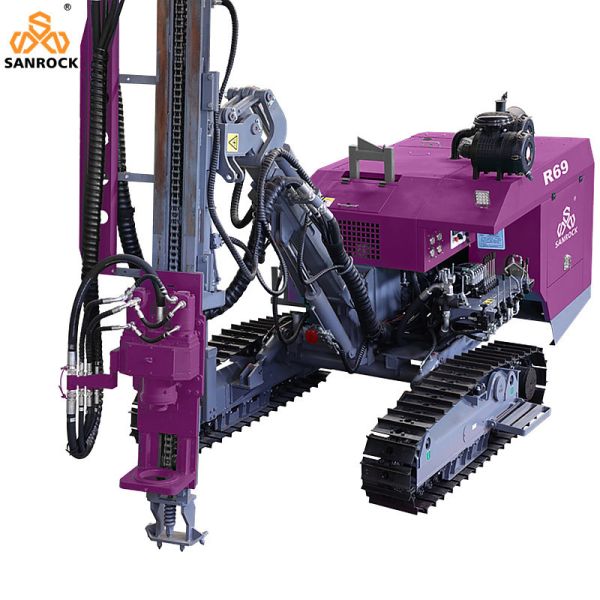

Surface Drilling Rig Crawler Borehole Drilling Rig Lifting Force 27KN Anchor Drilling Machine

A split-type down-the-hole drilling rig is a versatile rock drilling system composed of independently operated components including a high-pressure air compressor, hydraulic power unit, drilling mast, and DTH hammer. Its modular design allows easy transportation and quick reassembly in challenging terrains, making it ideal for remote mining, quarrying, and construction applications. The rig delivers powerful percussive energy through pneumatic or hydraulic mechanisms to achieve efficient hole drilling in hard rock formations.

Surface Drilling Rig Crawler Borehole Drilling Rig Lifting Force 27KN Anchor Drilling Machine

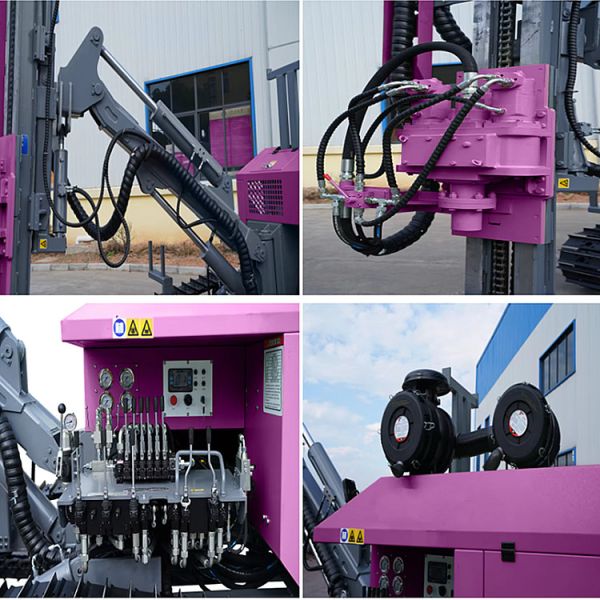

1.This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.

2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.

3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency.

4. All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.

5. Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

Surface Drilling Rig Crawler Borehole Drilling Rig Lifting Force 27KN Anchor Drilling Machine

Products Description

Product name	DTH drilling rig
Engine	Yuchai
Rated Power	92kw
Hole Diameter	203-500mm
Hole Depth	50m
Drill Pipe Size	Φ89/102*3000mm
DTH Hammer	3-8"
Working Pressure	1.0-2.4Mpa
Air Consumption	12-25m³/min
Rotary Torque	13000N.m
Rotary Speed	0-80rpm
Lifting Force	27KN
Traveling Speed	3km/h
Gradeability	30°
Ground Clearance	450mm
Feed Stroke	3150mm
Transportation Dimension	600023802600mm
Weight	6800kg
Fuel Tank Capacity	100L
Dust Collector Method	Option

Crawler travel system, making it ideal for remote or rugged terrains where traditional rigs face accessibility limitations.
Adaptability enables customization for various hole diameters and rock formations, coupled with simplified maintenance due to accessible component isolation.
This cost-effective solution combines portability, operational versatility, and reduced downtime, optimizing productivity in mining, construction, and geological exploration projects.

Surface Drilling Rig Crawler Borehole Drilling Rig Lifting Force 27KN Anchor Drilling Machine

Company Profile

1.What can you buy from us?

Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?

A: You can pay directly online on with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?

A: Our machinery is CE certified.
